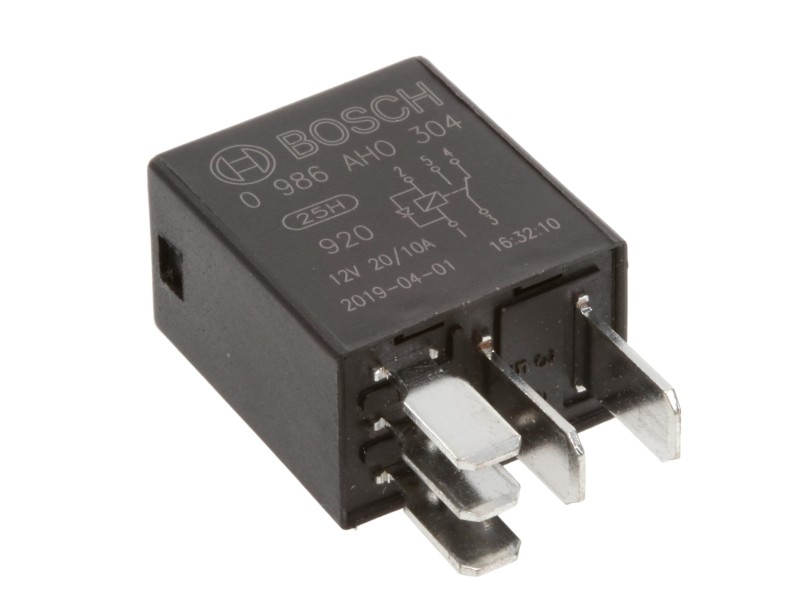

Bosch 5 pole change over relay
Code: 118.00.84
£5.30
( Excl VAT VAT £4.42)

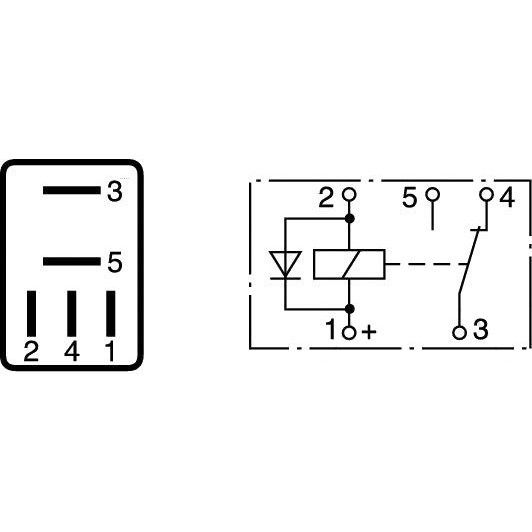

Bosch shunt relay / multifunction relay, 5-pole, 12 V.

  • Mini relay without holder
  • With blocking diode
  • Closes the circuit between the power source and an electrical consumer
  • Area of application: main headlights, additional headlights, horns, heaters, fan motors and window lifters, air conditioning and ignition systems, etc.

Technical specifications:

  • Nominal voltage: 12 volts
  • Nominal current: 20 A.
  • Number of poles: 5-pole
  • Relay function: three-phase generator
  • Switch function: without wiping function
  • Temperature range: -40 to +100 ° C
  • Protection class for housing and terminals in general: IP 20
  • Degree of protection for socket housings with connector plug installation position below: IP 5K4

Bosch shunt relay / multifunction relay, 5-pole, 12 V.

  • Mini relay without holder
  • With blocking diode
  • Closes the circuit between the power source and an electrical consumer
  • Area of application: main headlights, additional headlights, horns, heaters, fan motors and window lifters, air conditioning and ignition systems, etc.

Technical specifications:

  • Nominal voltage: 12 volts
  • Nominal current: 20 A.
  • Number of poles: 5-pole
  • Relay function: three-phase generator
  • Switch function: without wiping function
  • Temperature range: -40 to +100 ° C
  • Protection class for housing and terminals in general: IP 20
  • Degree of protection for socket housings with connector plug installation position below: IP 5K4
