LFP01 JMT KTM Samsung Replacement
Item code: 707.00.74
£ 58.99
RRP: £68.08
(Ex VAT £49.16)
Replacement for KTM part number: 79011153000
Corresponds with KTM part number: 79011153000

Lithium-ion batteries JMT, Hightech for your motorcycle.

the latest generation batteries identified by the red cover.

Spacer (S)
Battery is equipped with one or more spacers, which are taped with adhesive strip under the battery so that the battery fits exactly into the battery box.

Waterproof (W)
The battery is completely waterproof and is not damaged when the motorcycle is washed with high pressure.

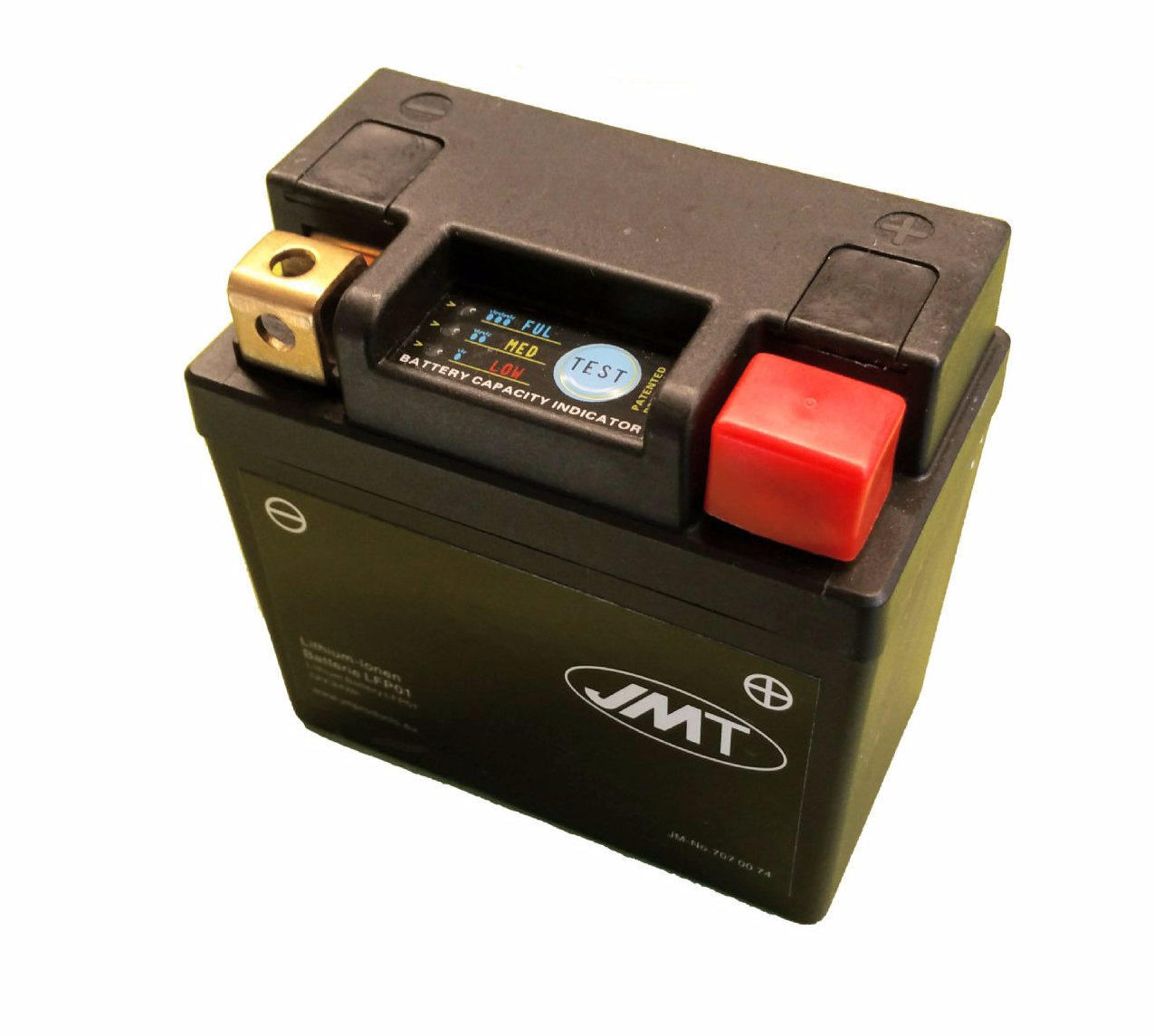

Indicator (I)
All batteries have a battery status - equipped Indicator.
Simply press the test button. Lights every 3 blue LEDs on the battery fully (ful) is loaded. Lights 2 LEDs, it is charged only half (med). At the latest when only one LED (low), the battery must be charged.

JMT lithium-ion batteries have the following benefits:

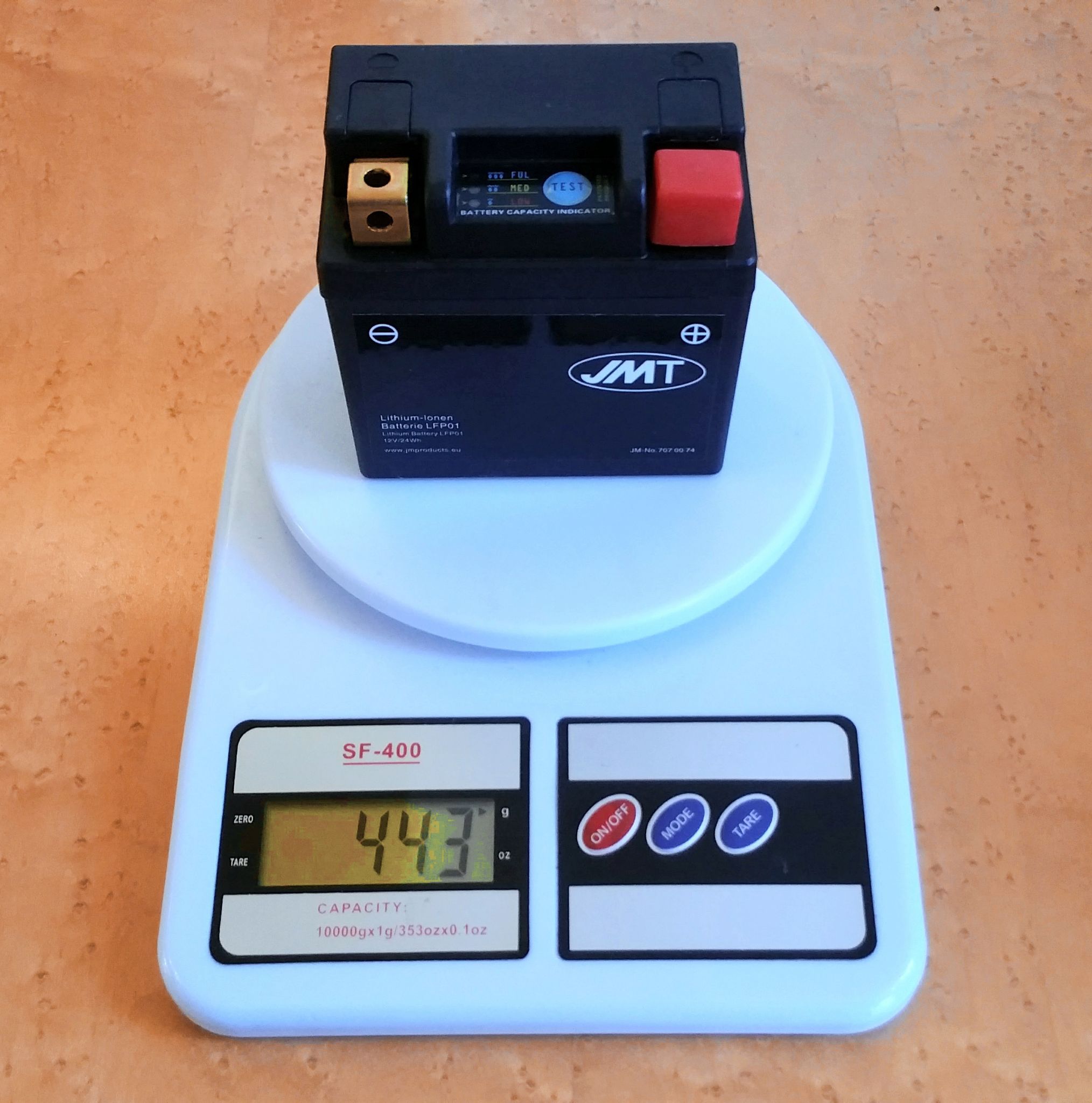

  • About 1/3 of the weight of comparable lead acid battery
  • Unbeatable ratio of cost/weight savings
  • Can be mounted in any position - no acid spillage
  • Does not contain heavy metals
  • Balanced discharge/charge of all cells by the integral balancer
  • Fast charging with high ampage systems (up to 90% fully charged in only 6 minutes)
  • Very low self-discharge - long shelf life (up to 5% per month)
  • Excellent performance at high temperatures (even up to 60° C)
  • Safe technology and high durability
Lead-acid batteries only use 30% of their capacity
whilst nearly 100% of the capacity of lithium-ion batteries is used. For this reason, lithium versions of JMT batteries need only 1/3 of the capacity of a comparable lead-acid battery for the same starting power.

A uniform charging of all the cells is ensured by a built-in processor (the "balancer").

The dimensions of the lithium-ion batteries (using adapters where necessary)correspond to the dimensions of the original lead-acid batteries and the connections are identical, thus the battery can be replaced easily in a few minutes.

*** IMPORTANT ***

Although JMT lithium-ion batteries discharge at a slower rate than coventional batteries it is vital that they are not allowed to go completely flat. Please regularly use the charge indicator on the top of the battey to assess it's state of charge especially if the bike has not been ridden for some time.

JMT lithium-ion batteries can be charged with conventional chargers but it is best to check that the charger is suitable for a lithium-ion battery. Some maintenance chargers have a recovery mode for sulphated lead acid batteries. These chargers should not be used with a lithium-ion battery as in recovery mode high voltage levels can damage them irreparably. If in doubt purchase a battery charger suitable for lithium-ion such as some of the examples below.

Although this lightweight battery is extremely suitable for everyday use, it should be noted that the starting capacity is reduced at temperatures below zero degrees Celsius.

Lead-acid batteries can be used only 30% of its capacity due to the specific characteristics, while nearly 100% of the capacity can be used in lithium ion batteries. For this reason, lithium version of JMT batteries for the same starting power need only 1/3 of the capacity of a comparable lead-acid battery.
A steady state of charge of all cells is also ensured by a built-in processor ( "balancer").

Although JMT lithium-ion batteries discharge at a slower rate than coventional batteries it is vital that they are not allowed to go completely flat. Please regularly use the charge indicator on the top of the battey to assess it's state of charge especially if the bike has not been ridden for some time.

JMT lithium-ion batteries can be charged with conventional chargers but it is best to check that the charger is suitable for a lithium-ion battery. Some maintenance chargers have a recovery mode for sulphated lead acid batteries. These chargers should not be used with a lithium-ion battery as in recovery mode high voltage levels can damage them irreparably. If in doubt purchase a battery charger suitable for lithium-ion such as some of the examples below.

The manufacturer guarantees a sufficient initial capacity of up to -5 degrees Celsius.

Technology:
JMT use lithium-ion batteries as a cathode material iron phosphate (LiFePO4), and use the lithium-polymer process in the manufacture.
This allows them to rise even explode either in flames during normal operation.
The technology and the manufacturing process ensure the highest safety standards for lithium batteries.
  • 12 V maintenance-free lithium-ion battery
  • Recommended charging current 2.0A
  • Maximum charge current for fast charging 20 A
Technical Data
Voltage :   12v
Capacity :   2.0 Ah (10 Std)
Capacity :   24 Wh
Type :   Lithium
Manufacturer claimed CCA :   120 A
SAE as measured by JMP battery tester :   180 A
DIN as measured by JMP battery tester :   101 A
EN as measured by JMP battery tester :   169 A
Length :   92/88.75 mm
Width :   52/48.75 mm
Height :   90 mm
Weight (including acid) :   0.4 kg
Terminal connection :   from above Front
Positive terminal :   Front right
Negative terminal :   Front left
Fits the following models:
Honda CRF 250 R : 2018
Honda CRF 450 R : 2018
Honda CRF 450 RX : 2018
Husqvarna FC 250 : 2016
Husqvarna FC 250 : 2017
Husqvarna FC 350 : 2016
Husqvarna FC 350 : 2017
Husqvarna FC 450 : 2016
Husqvarna FC 450 : 2017
Husqvarna FS 450 : 2016
Husqvarna FS 450 : 2017
KTM SX-F 250 ie4T : 2016
KTM SX-F 250 ie4T : 2017
KTM SX-F 350 ie 4T    : 2016
KTM SX-F 350 ie 4T : 2017
KTM SX-F 450 ie : 2016
KTM SX-F 450 ie : 2017
