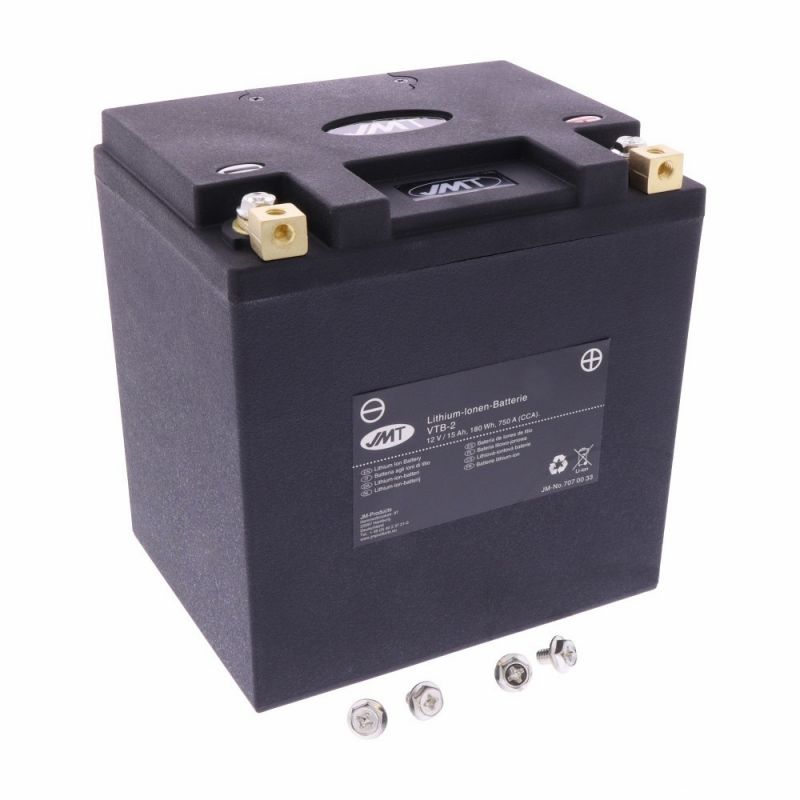

VTB-2 V-twin JMT Lithium Ion Battery (Replaces YB30L-B)
Code: 707.00.33
£ 246.39 £289.87 save:£43.48 ✔
(Ex £205.33)
JMT lithium-ion battery for Harley Davidson

By replacing a standard lead-acid battery with a JMT lithium-ion battery up to 5 kg in weight can be saved, without any appreciable effort.

Following advantages speak for JMT lithium-ion batteries:
  • About 1/3 of the weight of comparable lead acid battery
  • Unbeatable ratio of cost / weight saving
  • Because it contains no acid, can be mounted in any position
  • Contains no heavy metals
  • Balanced discharge / charge of all cells by Balancer
  • Fast charging with high charging current (up to 90% in 6 min)
  • Very low self-discharge (max. 5% per month)
  • Even at high temperatures still good performance up to 60 ° C
  • Safe technology and high durability
  • Special black, roughened surface for optimum "look"
  • Very high cold starting power
  • Excellent vibration resistance
  • Highly durable pole connections ensure a smooth start and a long lifespan
  • Will be delivered with a terminal cover, also in black
Lead-acid batteries can be used only 30% of its capacity due to the specific characteristics, while nearly 100% of the capacity can be used in lithium ion batteries. For this reason, lithium version of JMT batteries for the same starting power need only 1/3 of the capacity of a comparable lead-acid battery.
A steady state of charge of all cells is also ensured by a built-in processor ( "balancer").

Although JMT lithium-ion batteries discharge at a slower rate than coventional batteries it is vital that they are not allowed to go completely flat. Please regularly use the charge indicator on the top of the battey to assess it's state of charge especially if the bike has not been ridden for some time.

JMT lithium-ion batteries can be charged with conventional chargers but it is best to check that the charger is suitable for a lithium-ion battery. Some maintenance chargers have a recovery mode for sulphated lead acid batteries. These chargers should not be used with a lithium-ion battery as in recovery mode high voltage levels can damage them irreparably. If in doubt purchase a battery charger suitable for lithium-ion such as some of the examples below.

The manufacturer guarantees a sufficient initial capacity of up to -5 degrees Celsius.

Technical Specifications:
Voltage 12v
Capacity 10.5 Ah (10 Std)
Capacity 126 Wh
Type Lithium
Manufacturer claimed CCA 525 A
SAE as measured by JMP battery tester    705 A
DIN as measured by JMP battery tester 660 A
EN as measured by JMP battery tester 400 A
Length 168 mm
Width 131 mm
Height 174 mm
Weight 2.1kg
Terminal connection Front
Positive terminal Front right
Negative terminal Front left
Fit to The following models:
Harley Davidson FLHR 1340 Electra Glide Road King 1997 to 1998
Harley Davidson FLHR 1450 Elektra Glide Road King 1999 to 2001
Harley Davidson FLHR 1450 Road King 2002 to 2003
Harley Davidson FLHR 1584 Road King 2007 to 2008
Harley Davidson FLHR 1584 Road King ABS 2008 to 2009
Harley Davidson FLHR 1690 Road King ABS 2016
Harley Davidson FLHR-ANV 1690 Road King Classic ABS Anniversary 2013
Harley Davidson FLHRC 1584 Road King Classic 2007 to 2010
Harley Davidson FLHRC 1584 Road King Classic ABS 2008 to 2011
Harley Davidson FLHRC 1690 Road King Classic ABS 2011 to 2016
Harley Davidson FLHRCI 1450 EFI Elektra Glide Road King Classic 1999 to 2006
Harley Davidson FLHRI 1340 EFI Electra Glide Road King 1997 to 1998
Harley Davidson FLHRI 1450 EFI Road King 2004 to 2006
Harley Davidson FLHRS 1584 Road King Custom 2007
Harley Davidson FLHRSE 1800 CVO Road King ABS 2014
Harley Davidson FLHRSE4 1800 CVO Screamin Eagle Road King ABS 2008
Harley Davidson FLHRSE5 1800 CVO Road King ABS 2013
Harley Davidson FLHRSI 1450 EFI Road King Custom 2004 to 2006
Harley Davidson FLHT 1340 Electra Glide Standard 1997 to 1998
Harley Davidson FLHT 1450 Electra Glide Standard 1999 to 2003
Harley Davidson FLHT 1584 Electra Glide Standard 2007 to 2008
Harley Davidson FLHT 1584 Electra Glide Standard ABS 2008 to 2010
Harley Davidson FLHTC 1340 Electra Glide Classic 1997 to 1998
Harley Davidson FLHTC 1450 Electra Glide Classic 2002 to 2003
Harley Davidson FLHTC 1690 Electra Glide Classic ABS 2011 to 2012
Harley Davidson FLHTCI 1340 EFI Electra Glide Classic 1997 to 1998
Harley Davidson FLHTCI 1450 EFI Electra Glide Classic 2004
Harley Davidson FLHTCU 1340 Electra Glide Ultra Classic 1997
Harley Davidson FLHTCU 1584 Ultra Classic Electra Glide 2007
Harley Davidson FLHTCU 1584 Ultra Classic Electra Glide ABS 2008 to 2010
Harley Davidson FLHTCU 1690 Elektra Glide Ultra Classic ABS 2012 to 2016
Harley Davidson FLHTCUI 1340 EFI Electra Glide Ultra Classic 1997 to 1998
Harley Davidson FLHTCUI 1450 EFI Elektra Glide Ultra Classic 1999 to 2006
Harley Davidson FLHTCUSE 1690 EFI CVO Ultra Classic Electra Glide 2006
Harley Davidson FLHTCUSE2 1800 CVO Ultra Classic Electra Glide 2007
Harley Davidson FLHTCUSE 1800 CVO Screamin Eagle Ultra Classic Electra Glide ABS 2008 to 2012
Harley Davidson FLHTCUSE8 1800 CVO Ultra Classic Electra Glide ABS 2013
Harley Davidson FLHTCUTG 1690 Tri Glide Ultra 2014 to 2016
Harley Davidson FLHTI 1450 EFI Electra Glide Standard 2004 to 2006
Harley Davidson FLHTK 1690 Electra Glide Limited ABS 2013 to 2016
Harley Davidson FLHTK 1690 Electra Glide Ultra Limited ABS 2010 to 2012
Harley Davidson FLHTK-ANV 1690 Elektra Glide Limited Anniversary ABS 2013
Harley Davidson FLHTKL 1690 Electra Glide Limited Low ABS 2015 to 2016
Harley Davidson FLHTKSE 1800 CVO Elektra Glide Limited ABS 2014 to 2016
Harley Davidson FLHX 1584 Street Glide/ Street Glide ABS 2007 to 2010
Harley Davidson FLHX 1690 Street Glide ABS 2011 to 2014
Harley Davidson FLHXI 1450 EFI Street Glide 2006 to 2007
Harley Davidson FLHXS 1690 Street Glide Special ABS 2015 to 2016
Harley Davidson FLHXSE 1800 CVO Screamin Eagle Street Glide 2010
Harley Davidson FLHXSE 1800 CVO Street Glide ABS 2015 to 2016
Harley Davidson FLHXSE 1800 CVO Screamin Eagle Street Glide ABS 2011 to 2012
Harley Davidson FLTRI 1450 EFI Elektra Glide Road Glide 1999 to 2001
Harley Davidson FLTRSE3 1800 CVO Screamin Eagle Road Glide ABS 2009
Harley Davidson FLTRU 1690 Road Glide Ultra ABS 2016
Harley Davidson FLTRUSE 1800 CVO Road Glide Ultra ABS 2015 to 2016
Harley Davidson FLTRUSE 1800 CVO Screamin Eagle Road Glide Ultra ABS 2011
Harley Davidson FLTRXS 1690 Road Glide Special ABS 2015 to 2016
Harley Davidson FLTRXSE 1800 CVO Screamin Eagle Road Glide Custom ABS 2012
